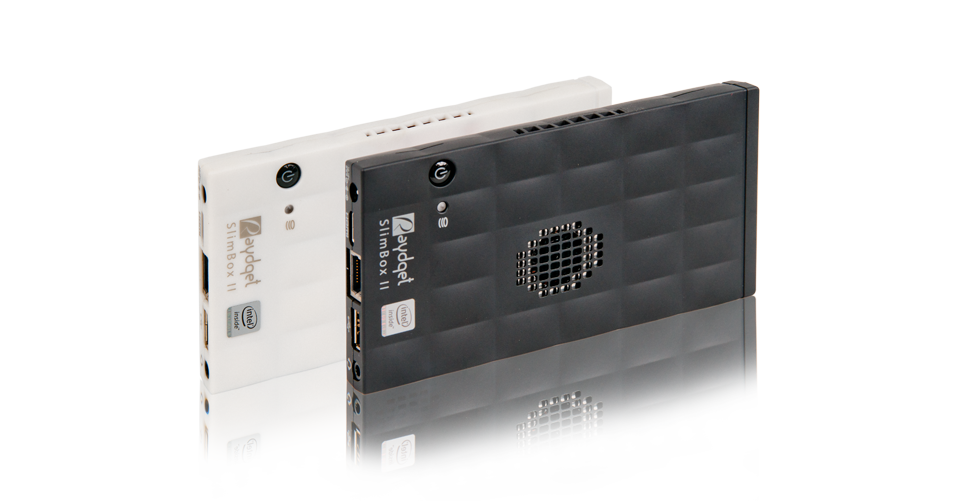

Raydget SlimBox II
MiniPC Raydget SlimBox II
| CPU | Intel® Atom™ N2800 1.86GHz |
|---|---|
| Chipset | Intel® NM10 Express Chipset |
| RAM | 2Gb DDR3-1066 |
| Disk | 64Gb-128Gb SATA II SSD |
| Net | WiFi b/g/n BT4.0 Ethernet 10/100/1000 |
| Audio | Mic jack, Headphones jack |
| Video | Mini HDMI (Type C) |
| USB | 2xUSB 2.0 |
| Power | DC 19V / 25W |
| Dimension | 145x77x16 mm |
| Weight | ~200 grams |
Just a few years ago it was hard to imagine that the PC computer can put on hand and you can carry in your pocket. We present the Ultra small PC Computer Raydget SlimBox II, Full functional PC for working, gaming and watching HD video. A built-in WiFi / BLUETOOTH allows go online and chat with friends wherever possible.
The latest technology and unique engineering solutions that are enclosed in a miniature, nice designed case, will allow you to forget about huge laptops. No any inconvenience of transfer the information. No any more double settings at work and home. Just work on full-functional PC, which can be carried in your pocket. It is really cool!
Also with SDD drive and Intel®, Raydget SlimBox II works really really fast.
Core Module
Based on 32nm process technology, the processor series feature new levels of performance-per-watt, opening the door to always-on, always-connected embedded devices. When paired with Intel® NM10 Express Chipset, the platform provides rich I/O capabilities and flexibility via high-bandwidth interfaces such as PCI Express, Serial ATA and USB 2.0.
- Intel® Rapid Start Technology provides fast resume; Intel® Smart Connect Technology enables an always-updated experience even during standby.
- Integrated hardware-accelerated decoder for smooth full HD (up to 1080p) video playback and streaming.
- Intel’s Deep Power Down Technology significantly reduces power usage during idle periods.
- Support for up to 2 GB of DDR3 system memory.
| File | Version | Type | Size |
|---|---|---|---|
| INF Chipset Update Utility – Primarily for Intel® NM10 Chipset | 9.2.2.1034 | Windows 2000/XP/Vista/Windows 7 | 2,72Mb |
| Intel® NM10 Chipset SATA AHCI floppy driver for Windows XP | 10.8.0.1003 | Windows XP 32 | 290Kb |
| Intel® Rapid Storage Technology (AHCI) driver | 10.8.0.1003 | Windows XP/Windows 7 | 6,4Mb |
| File | Version | Type | Size |
|---|---|---|---|
| Intel® GMA 3600/3650 Video | 8.14.8.1083 | Windows 7 32 | 15Mb |
| Intel® GMA 3600/3650 Video | 8.14.8.1091 | Windows 7 32 | 17,9Mb |
| Intel® GMA 3600/3650 Video | 1.15.1 | Windows XP 32 | 9,2Mb |
| Intel® GMA 3600/3650 Video | 1.0.1 | Linux 32 | 3,9Mb |
| Intel® GMA 3600/3650 Video | 1.0.3 | Linux 32 | 3,9Mb |
| File | Version | Type | Size |
|---|---|---|---|
| Realtek Audio Driver | 5.10.0.6710 | Windows XP | 26,2Mb |
| Realtek Audio Driver | 6.0.1.6804 | Windows 8/Windows 7 | 142,1Mb |
| File | Version | Type | Size |
|---|---|---|---|
| Realtek® RTL8111F Ethernet | 6.252 | Windows Vista/Windows Server 2008 | 756Kb |
| Realtek® RTL8111F Ethernet | 7.069 | Windows 7/Windows Server 2008 R2 | 859Kb |
| Realtek® RTL8111F Ethernet | 5.810 | Windows XP/Windows Server 2003 | 777Kb |
| File | Version | Type | Size |
|---|---|---|---|
| AMI Firmware Update | 2.35 | DOS | 70Kb |
| AMI Firmware Update | 2.35 | Windows 2000/XP/Vista/Windows 7 | 430Kb |
| BIOS ROM File | rev.F | BIOS | 1,2Mb |
| File | Version | Type | Size |
|---|---|---|---|
| Intel® Centrino® Wireless-N 135 Driver Only | 15.6.1 | Windows XP | 11,8Mb |
| Intel® Centrino® Wireless-N 135 Intel® PROSet/Wireless Software and Driver | 15.6.1 | Windows XP | 38,8Mb |
| Intel® Centrino® Wireless-N 135 Driver Only | 15.6.1 | Windows 7 | 10Mb |
| Intel® Centrino® Wireless-N 135 Intel® PROSet/Wireless Software and Driver | 15.6.1 | Windows 7 | 79Mb |
| Intel® Centrino® Wireless-N 135 Intel® My WiFi Dashboard Software | 15.6.0 | Windows 7 | 122,6Mb |
| Intel® Centrino® Wireless-N 135 | Linux | External link |
| File | Version | Type | Size |
|---|---|---|---|
| Intel® Centrino® Wireless-N 135 Intel® PROSet/Wireless Bluetooth Software | 3.0.1302 | Windows XP | 119,3Mb |
| Intel® Centrino® Wireless-N 135 Intel® PROSet/Wireless Bluetooth Software | 3.1.1309 | Windows 7 | 33,7Mb |
