CT-Q7-TCE6
CT-Q7-TCE6

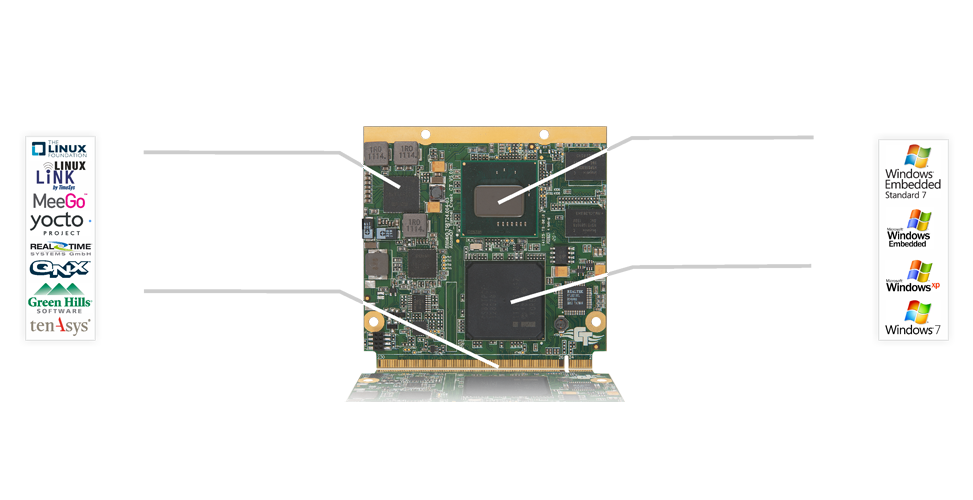

Full-featured computer board for
industrial embedded applications with QSeven socket
ROHM "" is a high-precision, low
noise and efficient power manager
and system clock generator
Intel @ Atom™ E600 Series
600MHz-1,6GHz
Intel
Multi-standard HD hardware
Decoder supporting MPEG2,
MPEG4, VC1, WMV9 and H.264
Encoder supporting MPEG4, H.263
and H.264
Provide most of embedded
interfaces
SATA II, SPI, I2C, CAN, Ethernet,
SD/SDIO/MMC, 6x USB2.0 host,
1x USB 2.0 client
Intel® Platform Controller Hub EG20T
QSeven "" - Q7 standard is a
Computer-On-Module, compact,
square & cost efficient module
concept for ultra mobile applications
- Full-featured computer board for industrial embedded applications with Q7 socket
- Intel® Atom™ E6XX Series Single Core 600MHz-1,6GHz 3,3-4,5W
- EG20T South bridge 1,55W
- DDR2-800 on board up to 1Gb
- 2x SATA2
- LVDS
- sDVO
- SDIO
- 2x PCIExpress™
- 6x USB 2.0 Host, 1 USB 2.0 Client
- Gigabit Ethernet Controller
- SPI
- I2C
- CAN
- Q7 pinout
- AMI BIOS Aptio™ EFI
- Compact size: 70 X 70 mm
Use in industrial embedded application. QSEVEN standard
The Intel® Atom™ processor E6xx series delivers an unprecedented level of I/O flexibility, departing from proprietary interfaces such as Front-side bus (FSB) and Direct Media Interface (DMI) and moving to the open PCI-Express* standard for processor-to-chipset interfaces. The highly integrated processor had 3D graphics, and video encode/decode, plus memory and display controllers in one package to help reduce bill of materials and save board real estate.
Processor paired with the Intel® Platform Controller Hub EG20T for many market segments such as industrial automation, retail, gaming and digital signage to meet the specific I/O requirements of many embedded applications such as in-vehicle infotainment systems, media phones and connected services gateways. For applications requiring a minimum of I/O interfaces, developers can also use discrete PCIe* devices such as PCIe-GbE controllers or PCIe-SATA controllers instead of an I/O Hub.
| File | Version | Type | Size |
|---|---|---|---|
| INF Chipset Update Utility – Primarily for Intel® Atom E6XX and EG20T Series Chipsets | 9.1.2.1013 | Windows 2000/XP/Vista/Windows 7 | 2,5Mb |
| INF Chipset Update Utility – Primarily for Intel® Atom E6XX and EG20T Series Chipsets | 9.1.2.1012 | Windows Embedded Standard 7 | 85Kb |
| Intel® Platform Controller Hub EG20T for Windows XP and Windows Embedded POSReady | 250 | Windows XP/Windows Embedded POS Ready | 1,5Mb |
| Intel® Platform Controller Hub EG20T for Windows 7 and Windows Embedded Standard 7 | 120 | Windows 7/Windows Embedded Standard 7 | 2,5Mb |
| Intel® Platform Controller Hub EG20T for Windows Embedded Standard 2009 | 250 | Windows Embedded Standard 2009 | 327Kb |
| Intel® Platform Controller Hub EG20T SATA AHCI floppy driver for Windows XP | 2.1.0.0 | Windows XP | 23Kb |
| Intel® Platform Controller Hub EG20T driver sources for Linux kernel 2.6.37 | 1.3.0 | Linux kernel 2.6.37 | 375Kb |
| File | Version | Type | Size |
|---|---|---|---|
| Intel® GMA 600 Video | 1.14.0.2443 | Windows 2000/XP | 7,6Mb |
| Intel® GMA 600 Video | 8.14.1140.2442 | Windows Vista/Windows 7 | 11,9Mb |
| Intel® GMA 600 Video | 1.14 | Linux | 19,2Mb |
| File | Version | Type | Size |
|---|---|---|---|
| AMI Firmware Update | 2.35 | DOS | 70Kb |
| AMI Firmware Update | 2.35 | Windows 2000/XP/Vista/Windows 7 | 430Kb |
| BIOS ROM File | A035 | BIOS | 1,4Mb |
E6XX-X
|
X
|
||||||||||||||||||||||||
Documentation
 | Catalog of CT-Q7-TCE6 series module |
|---|
Programmers Guide
The New Module Standard
Compact, Square & Cost Efficient Module Concept for Ultra Mobile Applications
- Low Cost
- Low Power Consumption
- Legacy Free
- Fast Serial Interfaces
Defined Interfaces
- 4x PCI Express x1 Lanes
- 2x SATA
- 8x USB 2.0
- 1x 1000BaseT Ethernet
- 1x SDIO 8 Bit
- LVDS 2x 24 Bit
- SDVO / HDMI / DisplayPort (shared)
- HDA (High Definition Audio)
- I²C Bus
- LPC (Low Pin Count Bus)
- CAN Bus
- Fan Control
- Power Management Signals
- Battery Management
- 5V Power (TDP 12 Watt)
- Unique API for I²C Bus, Watchdog Timer and EPI (Embedded Panel Interface)
- Thermal Cooling Interface defined
Typical Applications
- Automation
- DIN Rail Systems
- Ultra Mobile
- Mobile
Connector
The used MXM edge connector is a robust, single-connector solution that is capable of handling high speed PCI Express signals. This connector is available in 2 different heights (5.5mm and 7.8mm) for maximum flexibility. SMT Type 0.50mm [.020�] Pitch, 230 Pos, Foxconn AS0B3 Series (MXM Socket)
